FP110 – SS Securonic

PEOPLE COUNTING

FOORIR – FP110

Product Introduction

Lorem ipsum dolor sit amet, consectetur adipiscing elit. The IR people counter FP110 (standalone version) is mainly based on infrared blocking counting. The infrared receiving module automatically identifies the walking direction of pedestrians by the infrared blocking direction and generates a count. It is widely used in shopping malls, retail stores, public transportation, scenic spots, libraries,museums, restaurants, factories, supermarkets, parks, buildings, toilets, etc

Product Features

Accurate Counting in Multiple Scenarios: Supports accurate counting of single people walking normally, passing quickly, and elderly people walking slowly.
Simple Installation Experience: After configuration, simply paste the pairing code and start using it. Operation is effortless.
Flexible Power Supply Options: It has four built-in 18650 batteries and supports Type-C interface charging and external power supply (5V/2A adapter not included).
Convenient App Management: Once the device is connected to Bluetooth, you can upgrade to the latest version with a single click in the app. If a device malfunctions, you can also perform a one-click self-diagnosis.
App Data Query: Query multi-dimensional data (hourly data for the last 720 hours, daily data for the last 730 days, weekly data for 100 weeks, monthly data for the last 120 months, and annual data for the last 10 years) through the mobile app, and support exporting to CSV files.
Strong Anti-interference Ability: Supports normal operation under ESA alarms and other infrared bands.

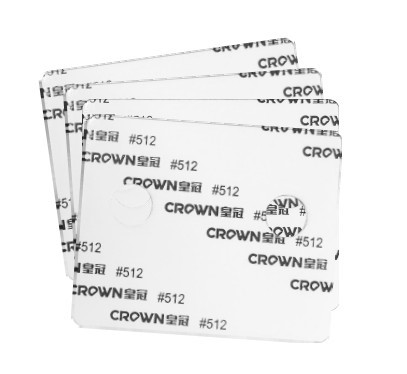

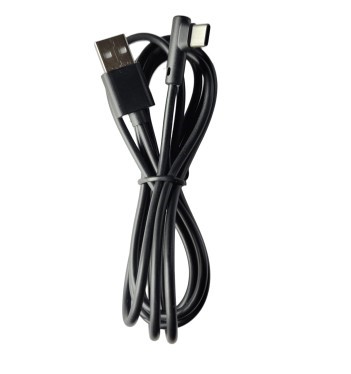

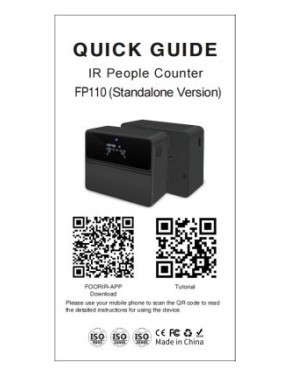

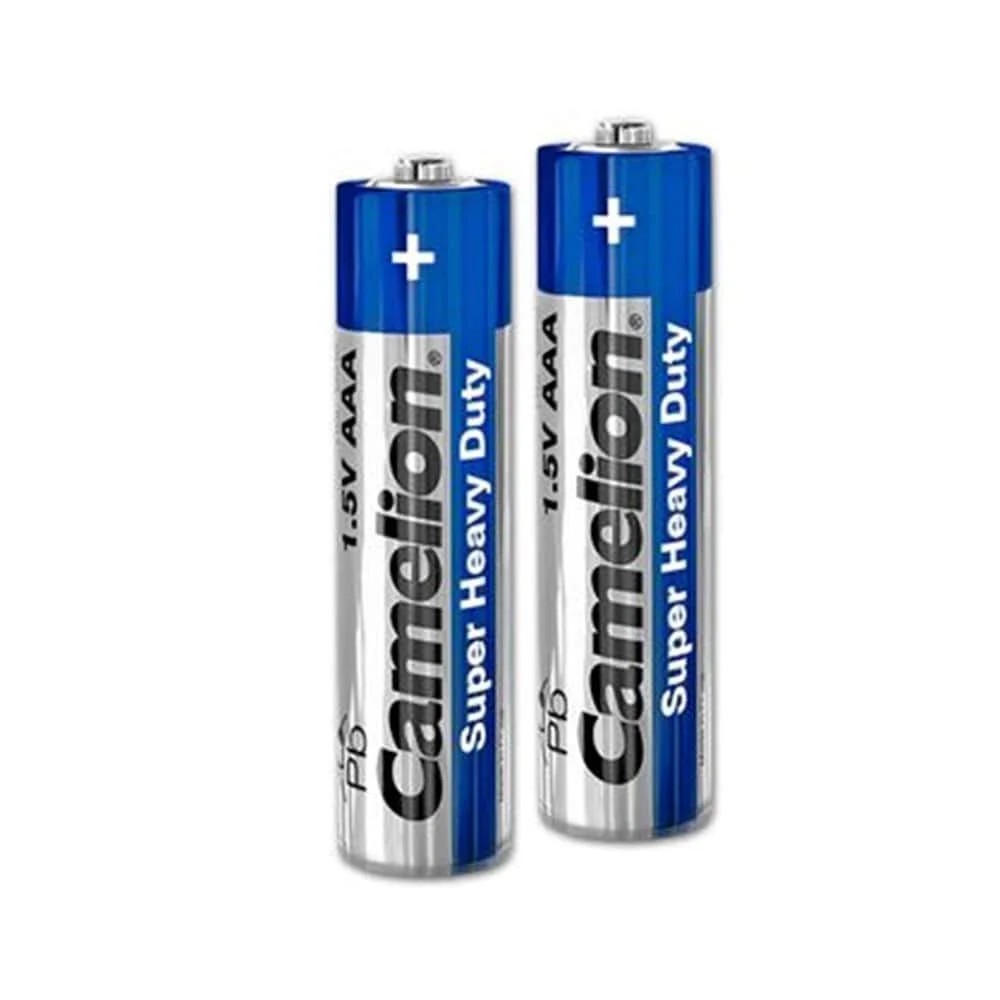

Product Accessories

Product Parameters

Product Model : FP110

Infrared operating frequency band : 860nm 180hz~240hz

Mounting Method : Fixed installation on the same horizontal line on both sides of the aisle

Detection Range :

<Short Range> 1m-10m indoors, 1m-6m outdoors
<Medium Range> 1m-12m indoors, 1m-8m outdoors
<Long Range> 1m-15m indoors, 1m-9m outdoors

Accuracy : Under standard conditions, the normal entry and exit rate for a single person is as high as 97%

Mounting Height : 1.2m-1.4m

Power : 0.0004W~0.04W

Power Supply : 3.7V lithium battery (3500mAh)/Type-c wired power supply(5V2A)

Communication Method : Bluetooth 5.1

Data Upload Method : /

Data Storage : 720 hours / 730 days / 120 months / 10 years

Battery Life : 1 year

Working Environment :

Operating temperature (-20°C to 55°C)
Operating humidity (10% to 80% RH (non-condensing))
Storage temperature (-40°C to 70°C)
Storage humidity (5% to 90% RH (non-condensing))

Product Dimensions (mm) : 78 x 64 x 30, Weight (Kg): 0.15/set

Packaging Dimensions (mm) : 240 x 100 x 95, Weight (Kg): 0.5/set (including accessories)

Outer Carton Dimensions (mm) : 500 x 500 x 250 (full case can hold 20 set); Weight (Kg): 11/case

Product Certificates : CE/FCC/RoHs /Quality Inspection Report/1.2m Drop Test Report/Appearance Patent/Utility Model Patent
